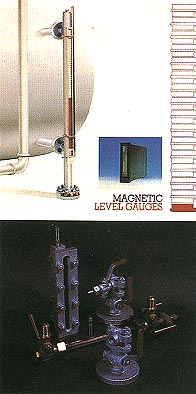

| LEVEL GAUGES
As inventors of the reflex glass we retain world market leadership and more experience in level gauge applications than any other manufacturer in the world. There are five types of level gauges in the Klinger range.
Glass
Klinger gauge glasses are manufactured from high quality Borosilicate Glass extra hard with low thermal expansion co-efficient. They are especially treated to ensure:
|
PISTON
VALVES
The piston valve is a Klinger invention. Since Richard Klinger first conceived the idea of replacing the disc and seat of the conventional valve by resilient valve rings, which can be replaced without removing the valve from the line, our factories have produced many millions of piston valves. Throughout the world they are used to regulate and control steam as well as highly aggressive media in the chemical industry or fine regulating in the oil industry:
1/4 TURN VALVES
Klinger provide a complete range of ball and plug valves.
All valves can be readily adapted for actuator operation. |
PLASTIC VALVES AND
FITTINGS
The range offers a comprehensive selection to enable the installation of a complete process system with both manual and automatic control options. Installation is easy and a full range of high quality components in UPVC, PE, PP ABS and PVBD is offered.
PIPE JOINTING
Straub pipe joints enable pipes of all materials from 30 to 3,200mm diameter to be installed faster and easier. This compact pipe joint is supplied ready for use. No machining or accurate butt joining of pipe ends is needed for its installation. Prefabricated pipe sections can also be built straight in a pipeline without any costly aligning or fitting work. |
¡@
| GASKETS
MAXIFLEX-SPIRAL WOUND
METAL CLAD
A full range of heat exchanger as well as special requirement gaskets are manufactured in Australia. These gaskets are manufactured using the highest grades of soft iron, stainless steel and copper with Klinger compressed fibre of different bases. RING GASKET CUTTER
The ideal tool for cutting circular gaskets, the Klinger ring Cutter Mk 3 produces clean, accurate cuts in most jointing materials. Its simple adjustment and operation make it easy to cut joints efficiently and professionally, permitting the re-use of the majority of the off-cuts. |
INDUSTRIAL
GASKETS
From base materials manufactured in Australia, Klinger offers a complete range of premium quality industrial gaskets. The range includes soft gaskets from materials especially selected to suit the special requirements of our customers A full range of non-asbestos materials are available in many forms including Klingersil, laminated graphite, PTFE, corks, rubbers and others. Guaranteed performance with quality products. ¡@ AUTOMOTIVE GASKETS High performance sealing materials, for the automotive industry
GRAPHITE
Sealing material for:
Lining material for protection against hot and low corrosive gases. Electrical and heat conductive material. ¡@ |
PACKINGS
The Klinger range of high tech gland packings offer a comprehensive choice with built in features to suit a wide variety of applications where a highly effective, long life seal is required. The exclusive Klinger-lock® braiding assures high resilience and extended retention of lubricants and other integral properties. ¡@ PLASTICS
KLINGERFLON(PTFE) PTFE product range supplied in:
Also available in fabricated form for pipe support slide bearings and bearing pads for heavy load movement. PTFE JOINT SEALANT Sealex expanded PTFE joint sealant
THREAD SEAL TAPE Klingerflon thread seal tape available in a variety of grades offers clean, quick and effective sealing of threaded pipe fittings. SPRAY PACKS Klingerflon spray for applications where good anti friction and release properties are required. |
¡@
JOINTING MATERIALS
KLINGER® SIL the new asbestos-free sealing generation.
The KLINGER® SIL range of sealing materials are manufactured from a combination of synthetic fibres, rubber and inorganic filler components. The mechanical strength and temperature resistance are determined to a major extent boy the synthetic fibres utilised. Research and development by Klinger over may years has resulted in the wide range of specialist application materials presented in this brochure, which enable the customer to choose the most cost efficient solution.
Manufacture in Australia for the Asia Pacific region ensures close understanding of market requirements and quick response times to customer needs.
¡@
|
General purpose compressed synthetic fibre jointing based on a blend of organic and inorganic fibres with NBR binder. Suitable for use with oils, water and gases. 3x A anti stick surfaces. |
High quality compressed synthetic fibre jointing composed of aramid fibres with NBR binder. Suitable for use with air, water, oils, fuel and gases. Particularly suitable for use in Internal Combustion engines, compressors and Hydraulic systems, 3xA anti stick surfaces. Also available with wire reinforcement - KLINGERSIL C4408 ¡@ |
High quality compressed synthetic fibre jointing with glass/aramid fibres and NBR binder. Suitable for use with air, steam, oil, fuels, gases (including Oxygen) and potable water applications. 3xA anti stick surfaces. |
|
Premium quality compressed synthetic fibre jointing composed of carbon fibres with NBR binder. Universal material with excellent steam (290¢XC), oil and chemical resistance. Particularly suitable for sue in highly alkaline applications, and applications requiring high load bearing characteristics. 3xA anti stick surfaces. |
Medium quality compressed synthetic fibre jointing composed of aramid fibres with SBR binder. Features excellent conformability, even with low surface load. Highly suitable for automotive applications due to "Controlled swell" properties in oil, combined with good resistance to water. Also suitable for light industrial and domestic appliance applications. 3xA anti stick surface on one side. ¡@ |
Premium quality compressed synthetic fibre acid resistant jointing. Specifically developed for strong organic and inorganic acid applications. Wide resistance range including most acids, fuels, oils, solvents, alkalis and water (not suited for concentrated nitric acid) 3xA anti stick surfaces. |
| WARNING: Do not use gasket compounds with non-Asbestos gaskets as this will advesley affect performance. Refer to Non-Asbestos Jointing Material brochure for physical properties. | |
All information and recommendations contained in this publication are to the best our knowledge correct. Since conditions of use are beyond our control users must
satisfy themselves that products are suitable for the intended processes and uses. No warranty is given or implied in respect of information or recommendations or
that any use of products will not infringe rights belonging to other parties. In any event or occurrence our liability is limited to our invoice value of the goods delivered
by us to you. We reserve the right to change product design and properties without notice.
|
